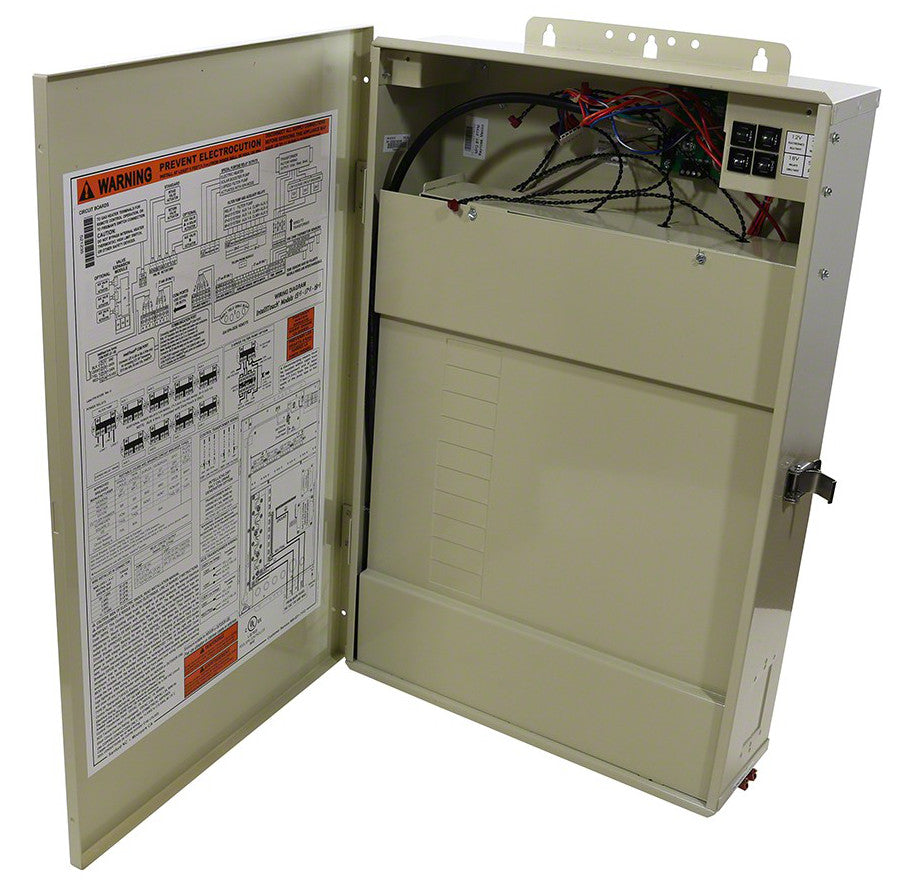

Load center for IntelliTouch and MobileTouch control systems with built-in IntelliChlor Transformer and built-in sub panel (125 AMPS) capable of holding up to eight 1 inch breakers. The Personality Kit is sold separately.
INCLUDES:
1 Sub Panel Load Center
includes five 25 AMP 3 HP relays (Can hold up to 10)
115V/230V transformer with secondary side circuit protection
Houses up to 10 circuits breakers
150 Amp Rated Panel
Multiple knockouts for ½ inch to 1-inch conduit are supplied as well as a GFCI side knock out
The Load Center Panel provides ample space for all high and low voltage wiring needs
IntelliChlor Transformer Built Into System
Load Center dimensions are: 17 W x 24 H
INCLUDES:
1 Sub Panel Load Center
includes five 25 AMP 3 HP relays (Can hold up to 10)
115V/230V transformer with secondary side circuit protection
Houses up to 10 circuits breakers
150 Amp Rated Panel
Multiple knockouts for ½ inch to 1-inch conduit are supplied as well as a GFCI side knock out
The Load Center Panel provides ample space for all high and low voltage wiring needs
IntelliChlor Transformer Built Into System
Load Center dimensions are: 17 W x 24 H
