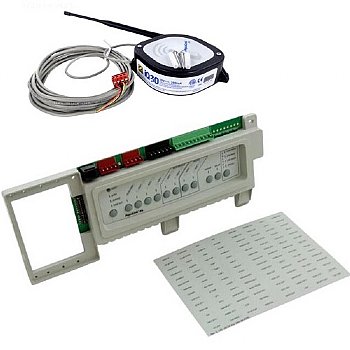

Jandy iAquaLink 3.0 iQ30-RS Web Connection Upgrade Kit

Started with an old Aqualink PDA that worked well but did not provide remote access. The upgrade kit is a direct drop in, connecting all of my Jandy actuators & original 4x Jandy relays. Note that this does not ship with any of the terminal headers, so you will need these off your old system or can order them online as well for connecting RS-485 devices, temp sensors & remote switches. If you have a heater 240V wired through a relay + a fireman switch, you can save a relay and wire the heater directly to AC. The iAqualink RS8 prevents heater coming on without pump and has a built-in cool down cycle after heater is switched off.The iAqualink WiFi unit is exact size of the PDA wireless unit, so even use the same screw holes. The iAqualink WiFi ships with the 4-pin red terminal header, so just works out of the box. Nice that this has CR2032 battery to retain the clock & schedules during power cuts. HINT: If you have pool/spa combo with boost pump for cleaner, will need to change 2 of the DIP switches, but otherwise works out of the box. DIP 1 to ON for Boost, DIP 6 to ON for shared heater.

We have regretted not having iaqualink since we built our pool 8 years ago. When our PDA tanked we decided to do the upgrade! It s a pretty easy install and from there plug and play! We are so happy and Pool Cleaning Parts are efficient and carefully packaged and shipped my new parts at no charge. Very happy with this purchase. Best price around too!

Lightning fried my old panel, and this was all I could find to replace it. It is expensive but the wifi capability is really nice. I too called product support and they were absolutely fantastic. Very hard to find good customer support these days.!

I needed to upgrade an old RS6 with the multi-button in house controller to one that could be controlled by WiFi for a short term rental. This combo was not only the most affordable kit I found in a massive search and it did the job. I was able to upgrade the board myself... it was as simple as unplugging things from one board and plugging them into the new one. If you've ever unplugged a jumper cable from a computer, or a battery from a drone, you can do this! A couple connectors were now on the bottom instead of the top, but that was it. This board had two connectors for controllers, so I was able to keep the in house controller active for my guests and the remote wifi so I could manage it and help out guests.

The web connection part of the order works fine to allow the app control of the system. However, this is not a universal upgrade for all Jandy systems. It will work if your pool and spa share a pump and heater. But if you have a dual equipment system (with two pumps and two heaters) this is not the right kit for your system.
